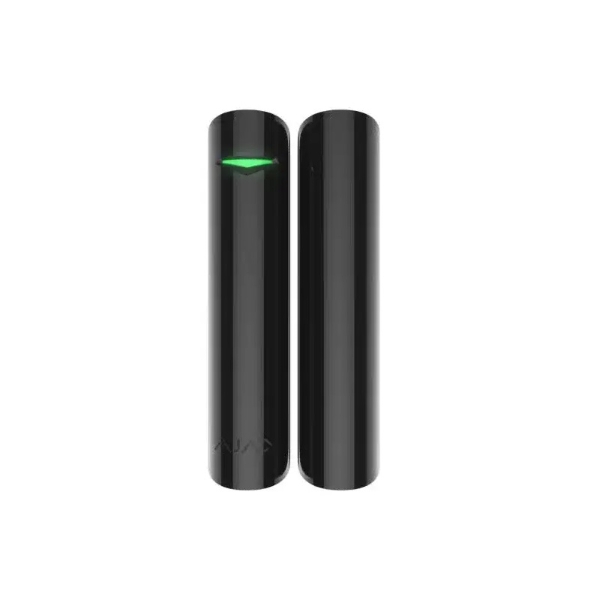

Ajax DoorProtect, black. AJDPBLA

Ajax DoorProtect, black

• Wireless door/window switch
• Detects when a door/window is broken open
• 2 magnets included: large and small
• Easy and quick installation

PRINCIPLE OF OPERATION
The switch notifies you of the first signs of a break-in. The device detects that a door or window is opened/broken open. The door switch sends, if the alarm is activated, a signal to the hub, which will respond and sound the alarm.

FUNCTIONS
The door/window switch consists of 2 units - a detector and a magnet. The set includes 2 magnets. The distance between the 2 mounted units determines which magnet you should use. The large magnet is installed at a distance of up to 2 cm and the small magnet up to 1 cm.

INSTALLATION AND SETUP
The door/window switch is ready for installation right out of the box; the battery is pre-installed and it is therefore not necessary to disassemble the switch. With a single click, it connects to the hub via the mobile app.
The switch is mounted on the included SmartBracket quickly and easily.

TECHNICAL SPECIFICATIONS:
• Detector type: Wireless
• Installation: Indoor
• Compatibility: Works with all Ajax hubs, range extenders, ocBridge Plus, uartBridge
• Sensor element: Reed switch
• Alarm signal delivery time: 0.15 s
• Activation threshold: Small magnet: 1 cm., Large magnet: 2 cm.
• Power supply: Battery: CR123A battery, 3 V.
• Battery life: Up to 7 years
• Operating temperature range: From -10 ° C to + 40 ° C
• Anti-tampering
• Dimensions: Diameter: 20 mm., Height: 90 mm.
• Weight: 29 g

PACKAGE INCLUDES:
• DoorProtect door/window switch
• SmartBracket mounting bracket
• Two magnets
• CR123A battery (pre-installed)
• External switch
• Installation kit
• User manual
